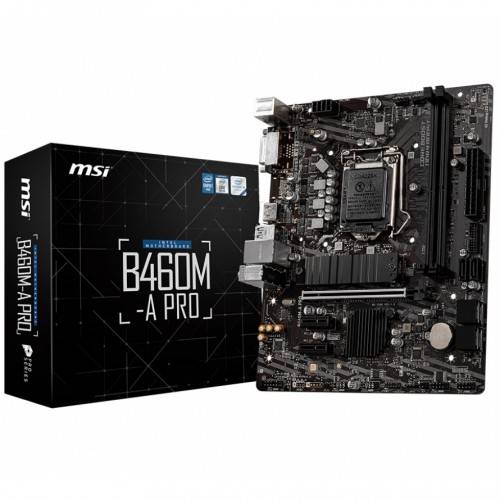

MSI Intel B460M-A Pro 10th Gen Intel Motherboard

Specification Basic Information Supported CPU Supports 10th Gen Intel Core and Pentium Gold / Celeron processors for LGA 1200 socket Chipset Intel B460 BIOS 1x 128 Mb flash UEFI AMI BIOS Multi-language Form Factor Miro-ATX Form Factor 9.3 in. x 7.6 in. (23.6 cm x 19.2 cm) Expansion Slots PCI 1x PCIe 3.0 x16 slot 2x PCIe 3.0 x1 slots M.2 Socket 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Memory Type Dual-Channel Architecture Slots 2x DDR4 memory slots Supported Memory Intel Core i7/ i9 Supports up to DDR4 2933 MHz Intel Core i5 and below Supports up to DDR4 2666 MHz Supports non-ECC, un-buffered memory Supports Intel Extreme Memory Profile (XMP) Maximum Memory 64GB Graphics Graphics 1x DVI-D port, supports a maximum resolution of 1920×1200 @60Hz 1x HDMI 1.4 port, supports a maximum resolution of 4096×2160 @30Hz Max Shared Memory 1GB Connector & Ports HDMI 1x HDMI 1.4 port, maximum resolution of 4096×2160 @30Hz DVI-D (s) 1x DVI-D port, maximum resolution of 1920×1200 @60Hz USB (s) Intel B460 Chipset 6x USB 3.2 Gen 1 5Gbps ports (4 Type-A ports on the back panel, 2 ports available through the internal USB 3.2 Gen 1 5Gbps connector) 6x USB 2.0 ports (2 Type-A ports on the back panel, 4 ports available through the internal USB 2.0 connectors) LAN Port (s) 1x Realtek 8111H Gigabit LAN controller Supported Storage Intel B460 Chipset 6x SATA 6Gb/s ports 1x M.2 slot (Key M) Supports up to PCIe 3.0 x4 and SATA 6Gb/s, 2242/ 2260/ 2280 storage devices Intel Optane Memory Ready Supports Intel Smart Response Technology for Intel Core processors Audio Realtek ALC892 Codec 7.1-Channel High Definition Audio Internal I/O Ports 1x 24-pin ATX main power connector 1x 8-pin ATX 12V power connector 6x SATA 6Gb/s connectors 2x USB 2.0 connectors (supports additional 4 USB 2.0 ports) 1x USB 3.2 Gen1 5Gbps connector (supports additional 2 USB 3.2 Gen1 5Gbps ports) 1x 4-pin CPU fan connector 1x 4-pin system fan connector 1x Front panel audio connector 2x Front panel connectors 1x Serial port connector 1x Chassis Intrusion connector 1x Clear CMOS jumper 4x EZ Debug LED TPM (Trusted Platform Module ) 1x TPM module connector Warranty Information Manufacturing Warranty 03 Years Warranty Description MSI Intel B460M-A Pro 10th Gen Intel Motherboard PRO series helps users work smarter by delivering an efficient and productive experience. Featuring stable functionality and high-quality assembly, PRO series motherboards provide not only optimized professional workflows but also less troubleshooting and longevity. B460M-A PRO BUSINESS ELEGANCE Core Boost With premium layout and digital power design to support more cores and provide better performance. 4K Support Onboard HDMI supports up to 4K UHD resolution. Audio Boost Reward your ears with studio grade sound quality for the most immersive gaming experience. DDR4 Boost The fully isolated DDR circuit to deliver pure data signals for the best performance and stability. M.2 Shield Frozr Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. PCI-E Steel Armor Protecting VGA cards against bending and EMI for better performance, stability and strength. MSI Intel B460M-A Pro 10th Gen Intel Motherboard USER FRIENDLY DESIGN MSI motherboards feature tons of convenient and smart design for DIY users, countless system tuning and troubleshooting tools are at your disposal to push your system to new heights and satisfy even the most demanding tweaker. Makes it so easy to install your own motherboard without any issue. COOLING DESIGN COMPATIBILITY RELIABLE COMPONENTS M.2 SHIELD FROZR FULLY FAN CONTROL MSI Intel B460M-A Pro 10th Gen Intel MotherboardM.2 SHIELD FROZR World’s fastest SSDs can start to lower performance when getting hot. Part of the motherboards heatsink design, M.2 SHIELD FROZR is the next generation M.2 thermal solution to avoid this by offering the best thermal protection to make sure that SSD maintains maximum performance. MSI Intel B460M-A Pro 10th Gen Intel Motherboard With MSI M.2 Shield FROZR – Prevents throttling – Maximizes drive performance – Higher maximum SSD speeds Normal M.2 SSD *performance vary by model configuration CONNECTIVITY The most important thing of DIY is expandability. MSI PRO series motherboards feature plenty possibility for prosumers’ need. Stable LAN, faster storage and USB transfer speed and other expandable connectors are ready to enlarge your flexibility. STORAGE USB OVERVIEW OPTANE FAST AND FUTURE-READY STORAGE MSI PRO series motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier. 1x 32 Gbps 6x 6 Gbps EXPERIENCE MORE MSI PRO series motherboards are designed to satisfy any professional workflow. Elevate your listening pleasure and enjoy extreme sound quality. Moreover, with years of experience in creating performance enhancing tools that are easy to use, only the highest quality applications are at your disposal. The extensive features let you fine-tune your system to deliver reliable maximum performance. PERFORMANCE AUDIO BIOS & SOFTWARE DDR4 BOOST CORE BOOST EXTREME STABILITY & COMPATIBILITY TESTING MSI conducts thorough memory testing with the most popular memory brands under extreme conditions to ensure your system runs stable no matter what. Our memory partners include brands like Corsair, Crucial, Kingston, G.Skill and many more to optimize memory modules and configurations. Previous Next 1 2 3 4 5 Supports 10th Gen Intel® Core™ / Pentium® Celeron® processors for LGA 1200 socket Supports DDR4 Memory, up to 2933(Max) MHz Core Boost: With premium layout and digital power design to support more cores and provide better performance. DDR4 Boost: Advanced technology to deliver pure data signals for the best performance and stability. M.2 Shield Frozr: Strengthened built-in M.2 thermal solution. Keeps M.2 SSDs safe while preventing throttling, making them run faster. Turbo M.2: Running at PCI-E Gen3 x4 maximizes performance for NVMe based SSDs Audio Boost: Reward your ears with studio grade sound quality Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength. Intel, the Intel Logo, Intel Inside, Intel Core, and Core Inside are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. © 2020 NVIDIA Corporation. All rights reserved. NVIDIA, the NVIDIA logo, GeForce, GeForce RTX, and NVIDIA Turing are registered trademarks and/or trademarks of NVIDIA Corporation in the United States and other countries. All other trademarks and copyrights are the property of their respective owners Brand and product names mentioned are trademarks of their respective owners. All images and descriptions are for illustrative purposes only. Visual representation of the products may not be perfectly accurate. Product specification, functions and appearance may vary by models and differ from country to country . All specifications are subject to change without notice. Please consult the product specifications page for full details.Although we endeavor to present the most precise and comprehensive information at the time of publication, a small number of items may contain typography or photography errors. Products may not be available in all markets. We recommend you to check with your local supplier for exact offers. See More…
