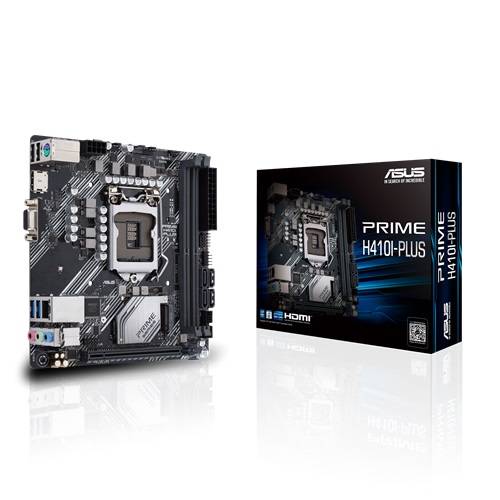

Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard

Specification Basic Information Supported CPU Intel® Socket 1151 9th / 8th Gen Intel® Core™, Pentium® Gold And Celeron® Processors Supports Intel® 14 Nm CPU Supports Intel® Turbo Boost Technology 2.0 * The Intel® Turbo Boost Technology 2.0 Support Depends On The CPU Types. Chipset Intel H310 Memory 2 X DIMM, Max. 32GB, DDR4 2666/2400/2133 MHz Non-ECC, Un-Buffered Memory Dual Channel Memory Architecture Supports Intel® Extreme Memory Profile (XMP) Graphics Integrated Graphics Processor- Intel® HD Graphics Support Multi-VGA Output Support : HDMI/DVI-D/D-Sub Ports – Supports HDMI 1.4b With Max. Resolution 4096 X 2160 @ 24 Hz / 2560 X 1600 @ 60 Hz – Supports DVI-D With Max. Resolution 1920 X 1200 @ 60 Hz – Supports D-Sub With Max. Resolution 1920 X 1200 @ 60 Hz Maximum Shared Memory Of 1024 MB (For IGPU Exclusively) Slots 1 X PCIe 3.0/2.0 X16 (X16 Mode, Gray) 2 X PCIe 2.0 X1 Supported Storage 1 X M.2 Socket 3, , With M Key, Type 2242/2260/2280 Storage Devices Support (Both SATA & X2 PCIE Mode)*1 4 X SATA 6Gb/S Port(S), Gray, LAN Realtek RTL8111H, 1 X Gigabit LAN Audio Realtek® ALC887 8-Channel High Definition Audio CODEC – Supports : Jack-Detection, Front Panel Jack-Retasking – LED-Illuminated Design – Brighten Up Your Build With The Gorgeous Illuminated Audio Trace Path. – Audio Shielding: Ensures Precision Analog/Digital Separation And Greatly Reduced Multi-Lateral Interference – Dedicated Audio PCB Layers: Separate Layers For Left And Right Channels To Guard The Quality Of The Sensitive Audio Signals – Premium Japanese Audio Capacitors: Provide Warm, Natural And Immersive Sound With Exceptional Clarity And Fidelity * Choose The Chassis With HD Audio Module In Front Panel To Support 8-Channel Audio Output. USB Port Intel H310 Chipset : 4 X USB 3.1 Gen 1 Up To 5Gbps Port(S) (2 At Back Panel, Blue, Type-A, 2 At Mid-Board) Intel H310 Chipset : 6 X USB 2.0/1.1 Port(S) (2 At Back Panel, , 4 At Mid-Board) Internal I/O Ports 1 X PS/2 Keyboard (Purple) 1 X PS/2 Mouse (Green) 1 X DVI-D 1 X D-Sub 1 X HDMI 1 X LAN (RJ45) Port(S) 2 X USB 3.1 Gen 1 (Blue) Type-A Up To 5Gbps 2 X USB 2.0 3 X Audio Jack(S) DIMENSIONS 8.9 Inch X 7.3 Inch Form Factor MATX Form Factor BIOS 128 Mb Flash ROM, UEFI AMI BIOS, PnP, SM BIOS 3.1, ACPI 6.1, MultilanguageBIOS, ASUS EZ Flash 3, CrashFree BIOS 3, F6 Qfan Control, F3 MyFavorites, Last Modified Log, F12 PrintScreen, And ASUS DRAM SPD (SerialPresence Detect) Memory Information HDMI HDMI 1.4b Warranty 03 Years Description Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard Intel® H410 (LGA 1200) Mini-ITX motherboard, M.2, DDR4 2666MHz, HDMI, D-SUB, USB 3.2 Gen 1 ports, SATA 6 Gbps, COM header Intel® LGA 1200 socket: Ready for 10th Gen Intel® Core™ processors Enhanced power solution: 4 1 1 DrMOS power stages, 8-layer PCB, for stable power delivery ASUS OptiMem II: Careful routing of traces and vias to preserve signal integrity for improved memory stability. Fan Xpert 4: Flexible controls for ultimate cooling and quietness, plus GPU-temperature sensing for cooler gaming. 5X Protection III: Multiple hardware safeguards for all-around protection. Compare   PS/2 combo port 2 x USB 2.0 HDMI port D-SUB port 2 x USB 3.2 Gen1 port Realtek LAN AudioAudio Features ● Audio Shielding ● Premium Japanese Audio Capacitors ● Dedicated Audio PCB Layers DrMOS DDR4 2666/2400/2133 support LGA 1200 Socket ● Intel® 10th Gen Processor 2 x Front USB 2.0 SATA 6Gb/s ports 1 x M.2 2260/2280 (PCIe3.0 x4 mode) 2 x Front USB 3.2 Gen 1 Intel® H410 Chipset PCIe 3.0 x16 ● ASUS SafeSlot Core support ASUS Prime series is expertly engineered to unleash the full potential of 10th Gen Intel® Core™ processors for daily users and all-round builders use. Combining a robust power design, comprehensive cooling solutions, and intelligent tuning options, Prime H410 provides a wealth of options for performance tuning via intuitive software and firmware features. Tune It Your Way Comprehensive controls form the foundation of the ASUS Prime series. The Prime H410 motherboard packs flexible tools to tune every aspect of your system, enabling you to tweak performance settings to perfectly match the way you work – maximizing your productivity. Intelligent Control UEFI BIOS EPU Fan Xpert 4 Digi VRM Control All-Around Energy Efficiency The Energy Processing Unit (EPU) automatically optimizes power consumption and maximizes energy savings with Away mode — a smart setting that creates an extreme energy-saving scenario by shutting down unused I/O controllers. Asus Prime H410I-Plus Intel 10th Gen Mini ITX Motherboard Flexible Air- and Liquid-Cooling Controls Fan Xpert 4 software provides comprehensive control over fans and all-in-one (AiO) coolers. Whether cooling with air or water, an Auto-Tuning mode intelligently configures all parameters with a single click. There’s also an Extreme Quiet mode that reduces all fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fans and AiO coolers can also be controlled via the UEFI BIOS. Precise Digital Power Control The Digi voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance. Back to Tune It Your Way ↑ Cool to the Core Prime H410 series is engineered with multiple onboard heatsinks and an array of hybrid fan headers to ensure your rig stays cool and stable under intense workloads. Cooler by Design Cooler by Design Prime H410 series features comprehensive cooling controls that are configurable via Fan Xpert software or via the UEFI BIOS. Multiple Temperature Sources AIO Pump Header Smart Protection 4-Pin PWM/DC Fan Each header can monitor and react to dedicated thermal sensors. Back to Cool to the Core ↑ Build on a Solid Foundation Prime H410 series is built to handle the additional cores and increased bandwidth of 10th Generation Intel® Core™ processors. A H410 motherboard provides all the fundamentals to boost daily productivity, so your system will be ready for action with stable power, intuitive cooling and flexible transfer options. Power Design Memory Storage Robust Power Design Stable power is essential to extract every last bit of performance out of 10th Generation Intel Core processors, Prime H410 is geared to cater to the demands of these high-core count CPUs. 4 1 1 DrMOS Power Stages A VRM with 4 1 1 DrMOS power stages delivers the power and efficiency that the latest Intel processors demand. Back to Build on a Solid Foundation ↑ Little Things Make a Big Difference Prime H410 series adds the nuanced details that improve every experience, from exclusive codecs that provide pristine audio quality to intuitive RGB lighting controls that let you customize your system to create a uniquely personal look. Audio Personalization DIY Friendly Outstanding Audio Combined onboard features deliver elevated audio Intelligent design and premium hardware create audio quality unlike anything you’ve ever experienced. Audio Shielding Separates analog/digital signal domains, significantly reducing multi-lateral interference. Separate Layer for Left and Right Tracks Ensures minimal crosstalk between audio paths. Premium Japanese Capacitors Premium parts provide an immersive sound signature, with exceptional fidelity. Back to Little Things Make a Big Difference ↑ Back to Little Things Make a Big Difference ↑ See more…. Products certified by the Federal Communications Commission and Industry Canada will be distributed in the United States and Canada. Please visit the ASUS USA and ASUS Canada websites for information about locally available products. All specifications are subject to change without notice. Please check with your supplier for exact offers. Products may not be available in all markets. Specifications and features vary by model, and all images are illustrative. Please refer to the specification pages for full details. PCB color and bundled software versions are subject to change without notice. The brand and product names mentioned are trademarks of their respective companies. The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing Administrator, Inc. in the United States and other countries. Specifications and features vary by model, and all images are illustrative. Please refer specification pages for full details. *Precise specifications and features vary by model. Please refer to the specification page The product (electrical, electronic equipment, Mercury-containing button cell battery) should not be placed in municipal waste. Check local regulations for the disposal of electronic products. The use of trademark symbol (TM, ®) appears on this website means that the word text, trademarks, logos, or slogans, is being used as a trademark under common laws protection and/or registered as a Trademark in the U.S. and/or other countries/region.
