Cooler Master Extreme Power Plus – RS-430W

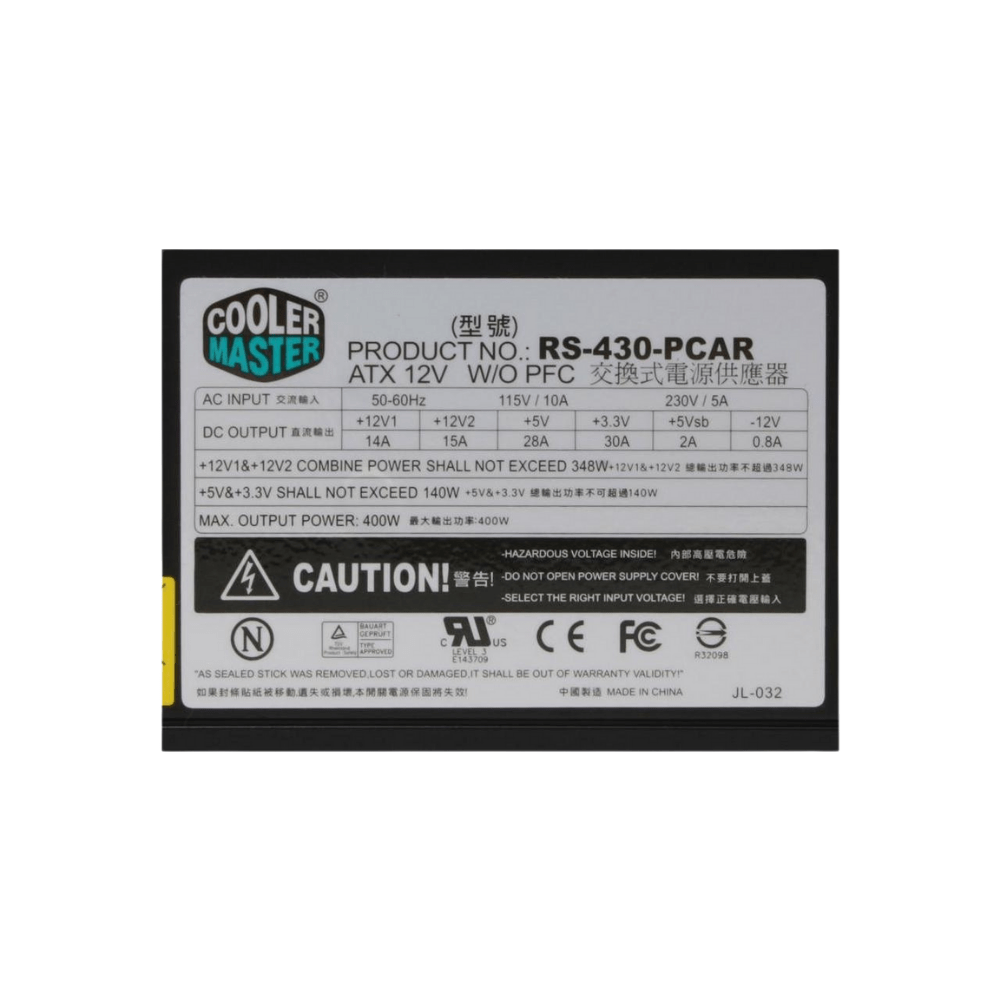

Model Brand Cooler Master Series eXtreme Power Model RS-430-PCAR Details Type ATX Form Factor 12V V2.01 Maximum Power  400W Fans  Sleeve bearing 120mm fan PFC  No Main Connector  24Pin 12V Rails  Yes PCI-Express Connector  No SLI  No Modular  No Power Good Signal 100-500ms Hold-up Time 17ms min. Efficiency  > 70% Over Voltage Protection  Yes Input Voltage 115 / 230 V Input Frequency Range 50/60 Hz Input Current 10A @ 115V, 5A @ 230V Output 3.3V@30A, 5V@28A, 12V1@14A, 12V2@15A,[email protected],[email protected] MTBF  >100,000 Hours Approvals Nemko, TUV, cUL, CE, BSMI, FCC, CCC Features Connectors 1 x Main connector (24Pin) 1 x 12V(P4) 6 x peripheral 2 x SATA 1 x Floppy Features More than 70% efficiency at typical load operation Green power design to meet energy star and blue angel requirements Super silent operation with intelligent fan speed control (20dBA) OVP / OCP / OTP / Short circuit protection 100% burn-in, hi-pot & ATE tested Category: Power Supplies
